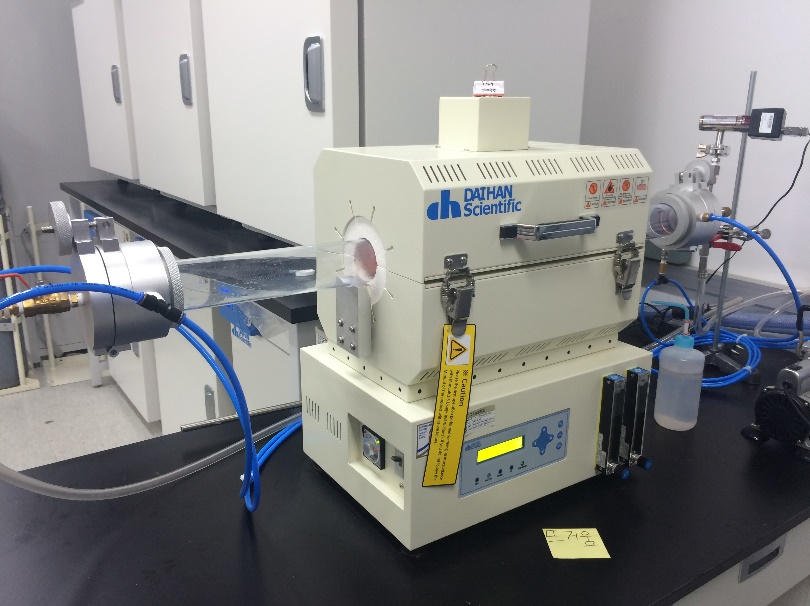

Tube Furnace, DAIHAN Scientific (FT-830)

Atachment
첨부파일 '1'
?

단축키

Prev이전 문서

Next다음 문서

+ - Up Down Comment Print
?

단축키

Prev이전 문서

Next다음 문서

+ - Up Down Comment Print


Specifications

-   Heating Zone : Ф 8 X L 30

-   Available Tube Size : Ф 3~6 cm

-   Heating Power : 1.4 kW

-   Required time to be reached 800 oC : 17 min

-   Dimension (w x d x h) : 40 x 28 x 44 cm

-   Controller : 1 x Programmable PID Controller (3Patterns 16 Segments)

-   Temp. Range & Heater : 300 ~ 1000 oC, Kantal A1, Embedded Wire Heating Elements

-   Thermocouple : K-type Thermocouple

-   Power Supply : AC 120V, 60Hz or 230V, 50/60 Hz

-   Vacuum condition by Diaphragm Pump

-   40% O2 with N2 balance, Ar gas is available



Usage / Application

High temperature, inert atmosphere / O2 atmosphere experiment
